Modular universal loading ramp LxWxH 750 x 1000 x 150 mm

  • Suitable for the most popular drum trucks, ergonomic slope of 11°, anti-slip surface
  • Extremely robust – for demanding industrial applications, indoors and outdoors
  • Several ramp components can be connected to each other and be individually expanded
  • For sump trays, depots etc. with different heights
  • Integrated guidance system for additional safety
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
New
Ref.: 546865 10

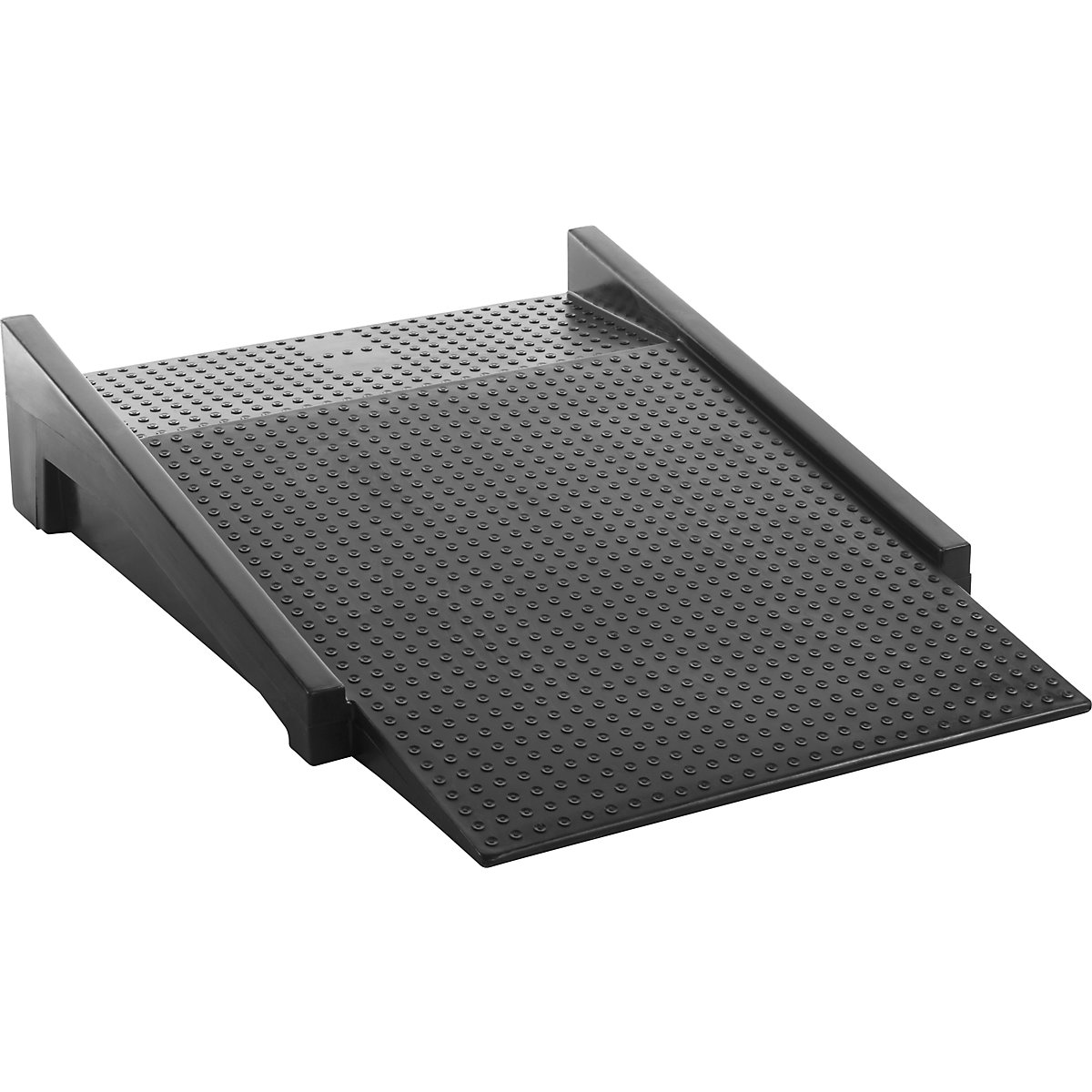

Modular universal loading ramp, LxWxH 750 x 1000 x 150 mm, black
Quantity discount from 2
Price / items (net)
€ 125.00

Product description
+
Robust construction made of chemical, temperature and UV resistant, hardwearing polyethylene (MDPE).
Several ramp modules can be connected to each other and platform modules (see Accessories) can be placed underneath them to combine them into loading ramps with a height of 150 – 450 mm and length of 1000 – 2500 mm:

1 ramp module:
Height 150 mm, length 1000 mm

2 ramp modules + 1 platform module:
Height 300 mm, length 1750 mm

3 ramp modules + 3 platform modules:
Height 450 mm, length 2500 mm

Max. load 250 kg.
Fast, easy and safe self assembly.
  • Suitable for the most popular drum trucks, ergonomic slope of 11°, anti-slip surface
  • Extremely robust – for demanding industrial applications, indoors and outdoors
  • Several ramp components can be connected to each other and be individually expanded
  • For sump trays, depots etc. with different heights
  • Integrated guidance system for additional safety
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
Technical data
+
Length750 mm
Width1000 mm
Materialpolyethylene (MDPE)
Max. load250 kg
Height150 mm
Colourblack
Suppliedassembled
