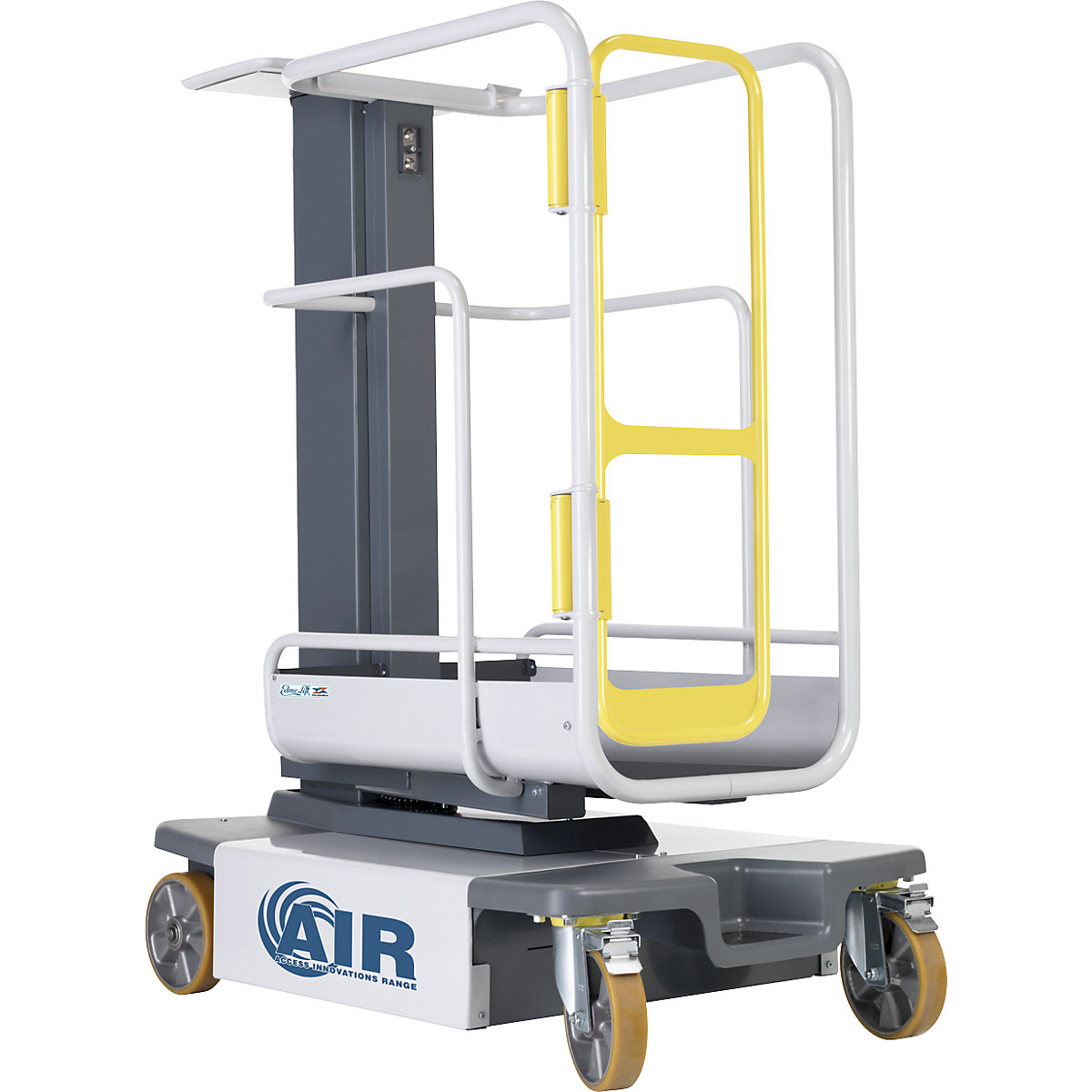

Edmolift – AIR work platform manual drive
- Mobile, safe, intelligent
- Sturdy design
New
Ref.: 539615 10
Edmolift – AIR work platform, manual drive, working height 4950 mm, max. load 180 kg
Price / items (net)
€ 10,900.00
Product description
+
Work platforms for indoor use
EdmoLift AIR is a series of compact and versatile work platforms that allow safe work in indoor areas. AIR lifts are characterised by their low entry height, small turning radius and low weight. AIR makes working at great heights efficient and safe, and eliminates the need for ladders. Our lifting platforms are made in Sweden and feature a CE marking verifying compliance with the high safety standards in the EU and EN 280 standards.
Applications
The AIR products made by EdmoLift were developed to make work in sectors such as retail, installation, cleaning, maintenance, warehousing and the construction industry easier. All of our products are easy to operate and look after. All lifting platforms are delivered assembled and ready for operation. At the end of the day's work, the lifting platform is plugged into a normal power socket and the integrated battery charger recharges the battery.
It couldn't be any easier.
The advantages of EdmoLift AIR
– Decoupling: the traverse drive can be disconnected with one simple operation, allowing the platform to be moved manually
– Operating instructions: always easily accessible in a built-in compartment
– Small turning radius: drive around tight corners
– Anchorage point: for attachment of a harness, when required
– USB ports: for easy charging of tablets or mobile devices
– Emergency stop: if an accident occurs nearby
EdmoLift AIR is a series of compact and versatile work platforms that allow safe work in indoor areas. AIR lifts are characterised by their low entry height, small turning radius and low weight. AIR makes working at great heights efficient and safe, and eliminates the need for ladders. Our lifting platforms are made in Sweden and feature a CE marking verifying compliance with the high safety standards in the EU and EN 280 standards.
Applications
The AIR products made by EdmoLift were developed to make work in sectors such as retail, installation, cleaning, maintenance, warehousing and the construction industry easier. All of our products are easy to operate and look after. All lifting platforms are delivered assembled and ready for operation. At the end of the day's work, the lifting platform is plugged into a normal power socket and the integrated battery charger recharges the battery.
It couldn't be any easier.
The advantages of EdmoLift AIR
– Decoupling: the traverse drive can be disconnected with one simple operation, allowing the platform to be moved manually
– Operating instructions: always easily accessible in a built-in compartment
– Small turning radius: drive around tight corners
– Anchorage point: for attachment of a harness, when required
– USB ports: for easy charging of tablets or mobile devices
– Emergency stop: if an accident occurs nearby
- Mobile, safe, intelligent
- Sturdy design
Technical data
+
| Height | 1572 mm |
|---|---|
| Width | 780 mm |
| Length | 1165 mm |
| Platform length | 760 mm |
| Platform width | 530 mm |
| Working height | 4950 mm |
| Colour | telegrey RAL 7047 basalt grey RAL 7012 |
| Overall height | 270 mm |
| Finish | powder coated |
| Max. payload | 180 kg |
| Min. lifting speed | 168 mm/s |
| Max. lifting speed | 168 mm/s |
| Lifting range | 270 - 2950 mm |
| Lifting motor | 0.8 kW |
| Wheel fittings | 2 swivel castors with double stops, 2 fixed castors |
| Swivel castor diameter | 200 mm |
| Fork roller diameter | 200 mm |
| Battery | 2 x 12 V / 75 Ah |
| Battery version | lead gel rechargeable battery |
| Battery charger | 230 V / 11 A |
| Supplied | assembled |
