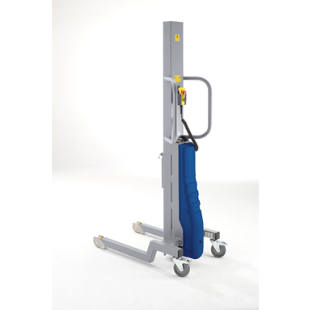

Multi-lifter

in steel, max. load 300 kg

No tools required to exchange accessories
Fully compliant with EN 1757-1
Max. load 300 kg
Our strongest mini-lifter with 500 mm load centre at 300 kg

They also allow heavier goods to be lifted in conjunction with easy to exchange accessories. Completely safe and low maintenance spindle drive.
Specified lifting range only applicable in conjunction with optionally available platform (see accessories).

Wheels
2 polyurethane steering wheels on the back, Ø 125 mm, with double stops.
Support legs optionally with straight running PU fork rollers or nylon steering wheels for manoeuvrability.

Chassis
Lowered height with fork rollers 90 mm – suitable to fit underneath Euro pallets. With steering wheels 140 mm.
Support leg castors enclosed with delivery, easy self-assembly.

Powder coated in white aluminium RAL 9006, cover in signal blue RAL 5005.
Protection type IP41, control unit IP67.

Modular construction
Can be expanded as required
– Lifting heights up to 2600 mm
– Chassis can be widened, shortened and extended
– Electrical equipment can be adapted
– Custom made accessories
Please ask for details.

Multi-lifter, in steel, max. load 300 kg

Price / item (Ex. VAT)

€4,890.00

Price / item (Inc. VAT)

€5,868.00

Order quantity:

{"articleNo":"M1025041","name":"Multi-lifter in steel, max. load 300 kg","baseProduct":"","productUrl":"/p/M1025041/","imageUrl":"/Lifting_Equipment/Mini_lifters/Multi-lifter_pdpsmall--AA00520058FF-01.jpg"}

Give us a call!

1 800 677 300

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 520058 10

Multi-lifter, in steel, max. load 300 kg, with 2 fork rollers

3- 4 Week Delivery

{"articleNo":"520058","name":"Multi-lifter in steel, max. load 300 kg","baseProduct":"M1025041","productUrl":"/p/M1025041/","imageUrl":"/Lifting_Equipment/Mini_lifters/Multi-lifter_pdpsmall--AA00520058FF-01.jpg"}

Item properties:

Lowered height: 90 mm Wheel fittings: 2 steering wheels with double stops, 2 fork rollers Fork roller material: polyurethane Fork roller diameter: 80 mm

{"features":[{"name":"Lowered height [mm]","normalizedName":"","value":"90","formattedValue":"90"},{"name":"Wheel fittings","normalizedName":"","value":"2 steering wheels with double stops, 2 fork rollers","formattedValue":"2 steering wheels with double stops, 2 fork rollers"},{"name":"Fork roller material","normalizedName":"","value":"polyurethane","formattedValue":"polyurethane"},{"name":"Fork roller diameter [mm]","normalizedName":"","value":"80","formattedValue":"80"}]}

Item no.: 520059 10

Multi-lifter, in steel, max. load 300 kg, with 4 steering wheels

3- 4 Week Delivery

{"articleNo":"520059","name":"Multi-lifter in steel, max. load 300 kg","baseProduct":"M1025041","productUrl":"/p/M1025041/","imageUrl":"/Lifting_Equipment/Mini_lifters/Multi-lifter_pdpsmall--AA00520059FF-01.jpg"}

Item properties:

Lowered height: 140 mm Wheel fittings: 4 steering wheels, 2 with double stops Fork roller material: nylon Fork roller diameter: 100 mm

{"features":[{"name":"Lowered height [mm]","normalizedName":"","value":"140","formattedValue":"140"},{"name":"Wheel fittings","normalizedName":"","value":"4 steering wheels, 2 with double stops","formattedValue":"4 steering wheels, 2 with double stops"},{"name":"Fork roller material","normalizedName":"","value":"nylon","formattedValue":"nylon"},{"name":"Fork roller diameter [mm]","normalizedName":"","value":"100","formattedValue":"100"}]}

Technical data

Max. load	300 kg
Load centre	500 mm
Overall length	1,150 mm
Overall width	570 mm
Overall height	2,000 mm
Spindle lift height	1,385 mm
Material	steel
Finish	powder coated
Colour	signal blue RAL 5005 white aluminium RAL 9006
Protection type	IP41 / IP67
Fittings	battery
Battery	2 x 12 V / 20 Ah
Battery charger	100 – 240 V / 4 A
Steering wheel material	polyurethane
Steering wheel diameter	125 mm
Weight	110 kg
Support leg length	725 mm
Conforms to	EN 1757-1
Lifting range with optional platform	120 – 1505 mm
Supplied	assembled
