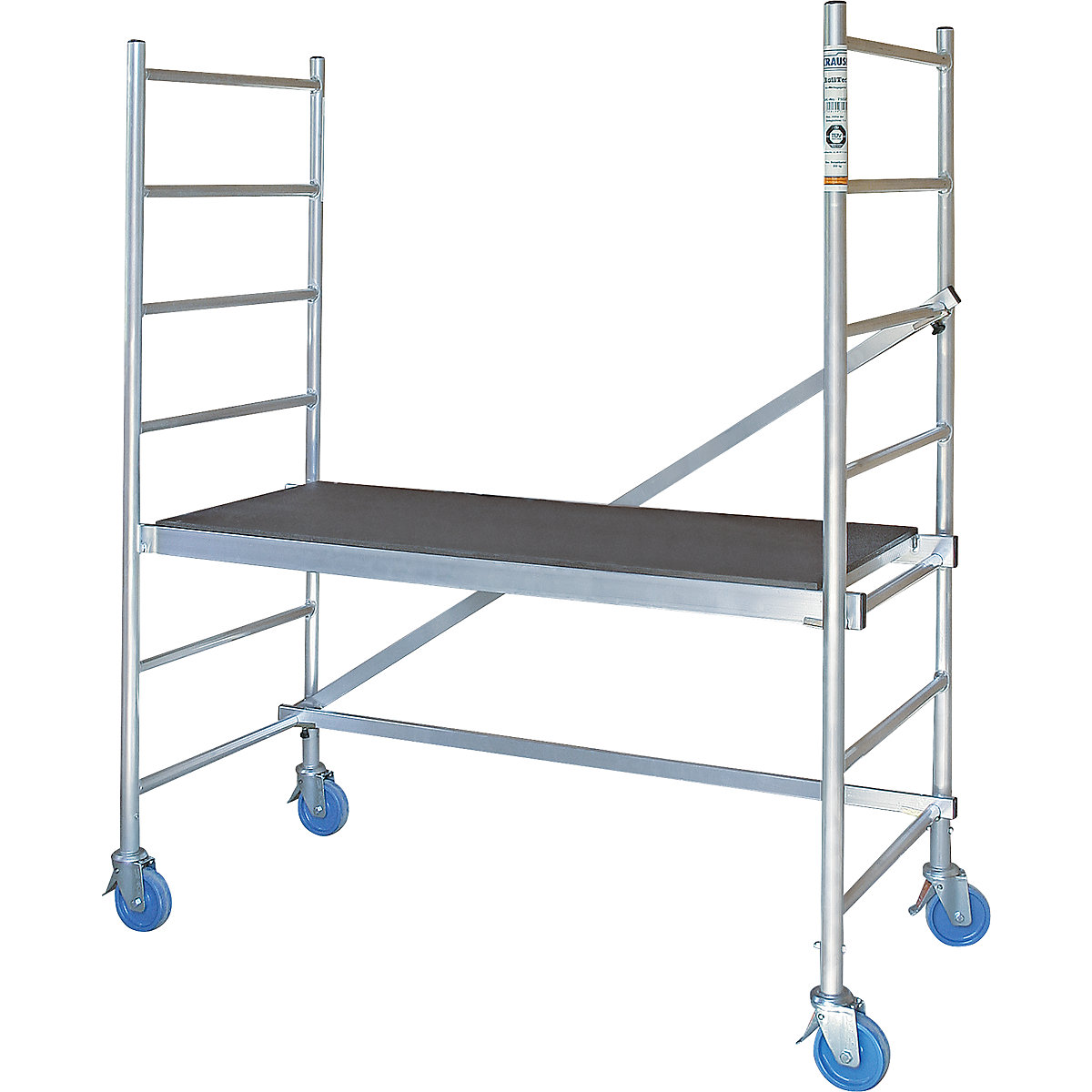

KRAUSE – RollTec aluminium mounting frame platform size 1500 x 600 mm

  • Consists of 5 system components, quick to set up without tools
  • Lightweight, compact and with braked fixed castors
  • Can also be used on stairs and landings
KRAUSE
5 year guarantee
5 year guarantee
New
Ref.: 569384 10
KRAUSE – RollTec aluminium mounting frame, platform size 1500 x 600 mm, working height 2.90 m
Price / items (net)
€ 469.00

Product description
+
The aluminium mounting frame that is easy to move around and to set up without tools for indoor installation.

– Max. platform load up to 180 kg
– TÜV tested, max. load 200 kg/m²
– Compact dimensions, passes through door frames
– Can also be used on landings and stairs
– Ideal for indoor installation
  • Consists of 5 system components, quick to set up without tools
  • Lightweight, compact and with braked fixed castors
  • Can also be used on stairs and landings
5 year guarantee
5 year guarantee
Technical data
+
Platform width600 mm
Platform height900 mm
Platform length1500 mm
Working height2900 mm
Standing height900 mm
Tower height1800 m
Weight24 kg
Materialaluminium
phenolic resin
Max. load180 kg
Ballasting for indoor areas--
Ballasting for outdoor areas--
Wheel diameter125 mm
Scaffolding width750 m
Scaffolding length1600 m
Tube diameter48 mm
Conforms toDIN EN 1004
Product typestandard mobile access tower
Suppliedflat pack
