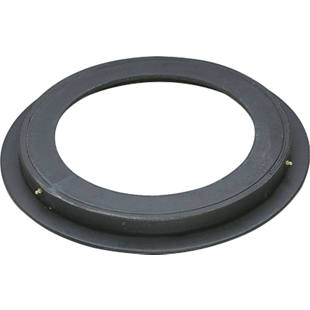

Ball bearing race for turntable steering

Ball bearing race for turntable steering

for transport equipment up to 30 km/h

For transport equipment up to 30 km/h
For turntable steering
2 steel rings with ball bearing races
Precision steel ball bearings
Lubrication nipple
Black primed surface

For flange Ø up to 500 mm, we recommend 4 – 6 bolts, for larger Ø at least 8 bolts.
All M 10 – M 12, rigidity class 8.8. Both flange rings without bore holes.

Note!
Dimension D (inner top ring Ø) is subject to manufacturing tolerances of +2 mm / –15 mm. For dim. A, manufacturing tolerances of 0 to +5 mm. Check tolerances to ensure smooth running fit.

Holes to be drilled by customer as required.

Ball bearing race for turntable steering, for transport equipment up to 30 km/h

Price / item (Ex. VAT)

from €279.00

Price / item (Inc. VAT)

from €334.80

Order quantity:

{"articleNo":"M7374","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Give us a call!

1 800 677 300

Technical data
Select item

10 of 10 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 188956 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 3500 kg

7-10 Working Days

{"articleNo":"188956","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 3,500 kg Flange diameter: 1,050 mm Outer diameter upper ring: 992 mm Overall height: 45 mm Inner diameter lower ring: 942 mm Inner diameter upper ring: 880 mm Hole circle diameter, lower ring: 1,025 mm Hole circle diameter, upper ring: 910 mm Weight: 34 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"3500","formattedValue":"3,500"},{"name":"Flange diameter [mm]","normalizedName":"","value":"1050","formattedValue":"1,050"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"992","formattedValue":"992"},{"name":"Overall height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"942","formattedValue":"942"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"880","formattedValue":"880"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"1025","formattedValue":"1,025"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"910","formattedValue":"910"},{"name":"Weight [kg]","normalizedName":"","value":"34","formattedValue":"34"}]}

Item no.: 188964 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 700 kg

10-15 Working Days

{"articleNo":"188964","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 700 kg Flange diameter: 400 mm Outer diameter upper ring: 342 mm Overall height: 45 mm Inner diameter lower ring: 292 mm Inner diameter upper ring: 230 mm Hole circle diameter, lower ring: 375 mm Hole circle diameter, upper ring: 260 mm Weight: 11 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"700","formattedValue":"700"},{"name":"Flange diameter [mm]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"342","formattedValue":"342"},{"name":"Overall height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"292","formattedValue":"292"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"230","formattedValue":"230"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"375","formattedValue":"375"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"260","formattedValue":"260"},{"name":"Weight [kg]","normalizedName":"","value":"11","formattedValue":"11"}]}

Item no.: 188972 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 900 kg

7-10 Working Days

{"articleNo":"188972","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 900 kg Flange diameter: 500 mm Outer diameter upper ring: 442 mm Overall height: 45 mm Inner diameter lower ring: 392 mm Inner diameter upper ring: 330 mm Hole circle diameter, lower ring: 475 mm Hole circle diameter, upper ring: 360 mm Weight: 15 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"900","formattedValue":"900"},{"name":"Flange diameter [mm]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"442","formattedValue":"442"},{"name":"Overall height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"392","formattedValue":"392"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"330","formattedValue":"330"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"475","formattedValue":"475"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"360","formattedValue":"360"},{"name":"Weight [kg]","normalizedName":"","value":"15","formattedValue":"15"}]}

Item no.: 188980 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 1500 kg

10-15 Working Days

{"articleNo":"188980","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 1,500 kg Flange diameter: 650 mm Outer diameter upper ring: 592 mm Overall height: 45 mm Inner diameter lower ring: 542 mm Inner diameter upper ring: 480 mm Hole circle diameter, lower ring: 625 mm Hole circle diameter, upper ring: 510 mm Weight: 20 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Flange diameter [mm]","normalizedName":"","value":"650","formattedValue":"650"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"592","formattedValue":"592"},{"name":"Overall height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"542","formattedValue":"542"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"480","formattedValue":"480"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"625","formattedValue":"625"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"510","formattedValue":"510"},{"name":"Weight [kg]","normalizedName":"","value":"20","formattedValue":"20"}]}

Item no.: 188999 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 1800 kg, overall height 45 mm

10-15 Working Days

{"articleNo":"188999","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 1,800 kg Flange diameter: 750 mm Outer diameter upper ring: 692 mm Overall height: 45 mm Inner diameter lower ring: 642 mm Inner diameter upper ring: 580 mm Hole circle diameter, lower ring: 725 mm Hole circle diameter, upper ring: 610 mm Weight: 23 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"1800","formattedValue":"1,800"},{"name":"Flange diameter [mm]","normalizedName":"","value":"750","formattedValue":"750"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"692","formattedValue":"692"},{"name":"Overall height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"642","formattedValue":"642"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"580","formattedValue":"580"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"725","formattedValue":"725"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"610","formattedValue":"610"},{"name":"Weight [kg]","normalizedName":"","value":"23","formattedValue":"23"}]}

Item no.: 189006 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 2500 kg, overall height 45 mm

10-15 Working Days

{"articleNo":"189006","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 2,500 kg Flange diameter: 850 mm Outer diameter upper ring: 792 mm Overall height: 45 mm Inner diameter lower ring: 742 mm Inner diameter upper ring: 680 mm Hole circle diameter, lower ring: 825 mm Hole circle diameter, upper ring: 710 mm Weight: 27 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"2500","formattedValue":"2,500"},{"name":"Flange diameter [mm]","normalizedName":"","value":"850","formattedValue":"850"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"792","formattedValue":"792"},{"name":"Overall height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"742","formattedValue":"742"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"680","formattedValue":"680"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"825","formattedValue":"825"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"710","formattedValue":"710"},{"name":"Weight [kg]","normalizedName":"","value":"27","formattedValue":"27"}]}

Item no.: 189014 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 3000 kg

5-6 Week Delivery

{"articleNo":"189014","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 3,000 kg Flange diameter: 950 mm Outer diameter upper ring: 892 mm Overall height: 45 mm Inner diameter lower ring: 842 mm Inner diameter upper ring: 780 mm Hole circle diameter, lower ring: 925 mm Hole circle diameter, upper ring: 810 mm Weight: 30 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Flange diameter [mm]","normalizedName":"","value":"950","formattedValue":"950"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"892","formattedValue":"892"},{"name":"Overall height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"842","formattedValue":"842"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"780","formattedValue":"780"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"925","formattedValue":"925"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"810","formattedValue":"810"},{"name":"Weight [kg]","normalizedName":"","value":"30","formattedValue":"30"}]}

Item no.: 189022 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 4500 kg

10-15 Working Days

{"articleNo":"189022","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 4,500 kg Flange diameter: 1,050 mm Outer diameter upper ring: 987 mm Overall height: 52 mm Inner diameter lower ring: 934 mm Inner diameter upper ring: 865 mm Hole circle diameter, lower ring: 1,025 mm Hole circle diameter, upper ring: 890 mm Weight: 40 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"4500","formattedValue":"4,500"},{"name":"Flange diameter [mm]","normalizedName":"","value":"1050","formattedValue":"1,050"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"987","formattedValue":"987"},{"name":"Overall height [mm]","normalizedName":"","value":"52","formattedValue":"52"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"934","formattedValue":"934"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"865","formattedValue":"865"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"1025","formattedValue":"1,025"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"890","formattedValue":"890"},{"name":"Weight [kg]","normalizedName":"","value":"40","formattedValue":"40"}]}

Item no.: 189030 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 1800 kg, overall height 52 mm

10-15 Working Days

{"articleNo":"189030","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 1,800 kg Flange diameter: 500 mm Outer diameter upper ring: 437 mm Overall height: 52 mm Inner diameter lower ring: 384 mm Inner diameter upper ring: 315 mm Hole circle diameter, lower ring: 475 mm Hole circle diameter, upper ring: 340 mm Weight: 17 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"1800","formattedValue":"1,800"},{"name":"Flange diameter [mm]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"437","formattedValue":"437"},{"name":"Overall height [mm]","normalizedName":"","value":"52","formattedValue":"52"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"384","formattedValue":"384"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"315","formattedValue":"315"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"475","formattedValue":"475"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"340","formattedValue":"340"},{"name":"Weight [kg]","normalizedName":"","value":"17","formattedValue":"17"}]}

Item no.: 189049 10

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 2500 kg, overall height 52 mm

7-10 Working Days

{"articleNo":"189049","name":"Ball bearing race for turntable steering for transport equipment up to 30 km/h","baseProduct":"M7374","productUrl":"/p/M7374/","imageUrl":"/Castors_Wheels/Steering_rings/Ball_bearing_race_for_turntable_steering_pdpsmall--00002039_kk_f.jpg"}

Item properties:

Max. load axial: 2,500 kg Flange diameter: 650 mm Outer diameter upper ring: 587 mm Overall height: 52 mm Inner diameter lower ring: 534 mm Inner diameter upper ring: 465 mm Hole circle diameter, lower ring: 625 mm Hole circle diameter, upper ring: 490 mm Weight: 23 kg

{"features":[{"name":"Max. load axial [kg]","normalizedName":"","value":"2500","formattedValue":"2,500"},{"name":"Flange diameter [mm]","normalizedName":"","value":"650","formattedValue":"650"},{"name":"Outer diameter upper ring [mm]","normalizedName":"","value":"587","formattedValue":"587"},{"name":"Overall height [mm]","normalizedName":"","value":"52","formattedValue":"52"},{"name":"Inner diameter lower ring [mm]","normalizedName":"","value":"534","formattedValue":"534"},{"name":"Inner diameter upper ring [mm]","normalizedName":"","value":"465","formattedValue":"465"},{"name":"Hole circle diameter, lower ring [mm]","normalizedName":"","value":"625","formattedValue":"625"},{"name":"Hole circle diameter, upper ring [mm]","normalizedName":"","value":"490","formattedValue":"490"},{"name":"Weight [kg]","normalizedName":"","value":"23","formattedValue":"23"}]}

Technical data

Flange thickness	8 mm
Supplied	assembled

Customer reviews

Ball bearing race for turntable steering

from 14-Dec-2017 | Poland Google Translate

Evaluation of the item with the item no.: 188980

automtyzacja proceów produkcyjnych

Ball bearing race for turntable steering

from 20-Oct-2017 | Great Britain

Evaluation of the item with the item no.: 188964

Does what it should do.

Ball bearing race for turntable steering

from 23-Mar-2017 | Netherlands Google Translate

Evaluation of the item with the item no.: 188972

moet er nog mee aan het werk dus kan er nog niet veel van zeggen. maar eerste indruk is goed

Ball bearing race for turntable steering

from 21-Nov-2016 | Poland Google Translate

Evaluation of the item with the item no.: 188972

Zastosowano jako obrotnica do stanowiska lakierniczego
