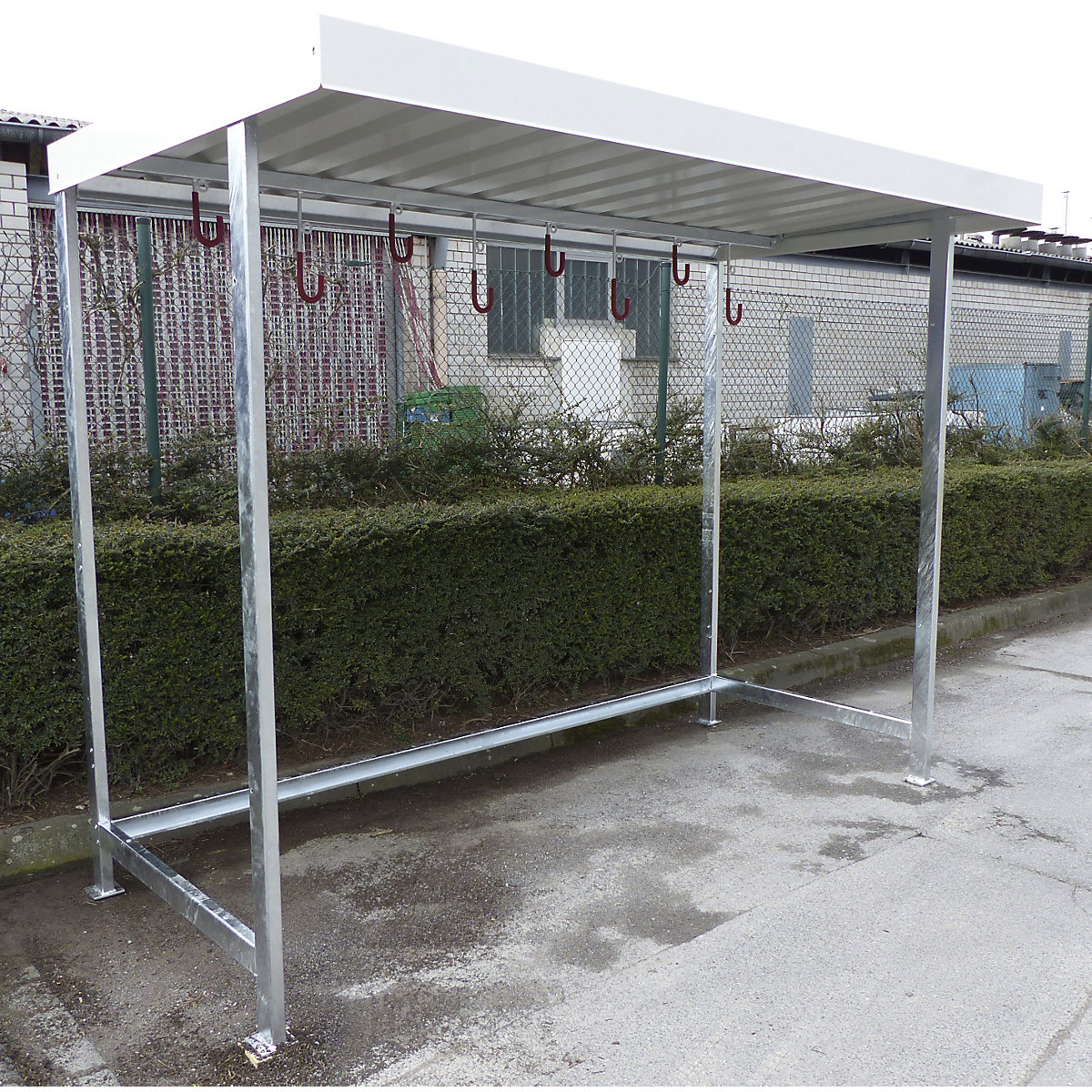

Shelter with bicycle hanger base unit

  • Shelter incl. eight bicycle hangers
  • Can be expanded as needed with extension units
  • Max. snow load 75 kg/m²
Shelter with bicycle hanger, base unit, zinc plated
Price / items (net)
from
€ 929.00

Product description
+
Frame construction
Rectangular tubing, 80 x 40 mm, with 100 x 100 mm base plates to bolt in place. Distance from centre to centre of uprights 2960 mm.
Roof construction
Edge profile, 150 mm high (three sided) with covering without beams which is made of trapezoidal, zinc plated sheet metal, roof slopes down to the rear. Powder coated in grey white RAL 9002.
Powder coated model
Steel frame, bicycle hooks and panels zinc plated and additionally powder coated in one of the five RAL colours.
Please state the desired RAL colour when ordering powder coated models.
Supplied flat pack. Assembly instructions and plans for foundation are included. Foundation to be installed by customer.
Other RAL colours available on request.
  • Shelter incl. eight bicycle hangers
  • Can be expanded as needed with extension units
  • Max. snow load 75 kg/m²
Technical data
+
Clear height2200 mm
Height2350 mm
Width3030 mm
Depth1600 mm
Number of bicycle hooks8 pcs.
Distance between supports3 m
Materialsteel
Frame profile80 x 40 mm
Constructionstandard unit
Roof colourgrey white RAL 9002
Roof blind height150 mm
Roof coveringtrapezoidal sheet metal, galvanised and coated
Max. snow load75 kg/m²
Suppliedflat pack
Weight161 kg
