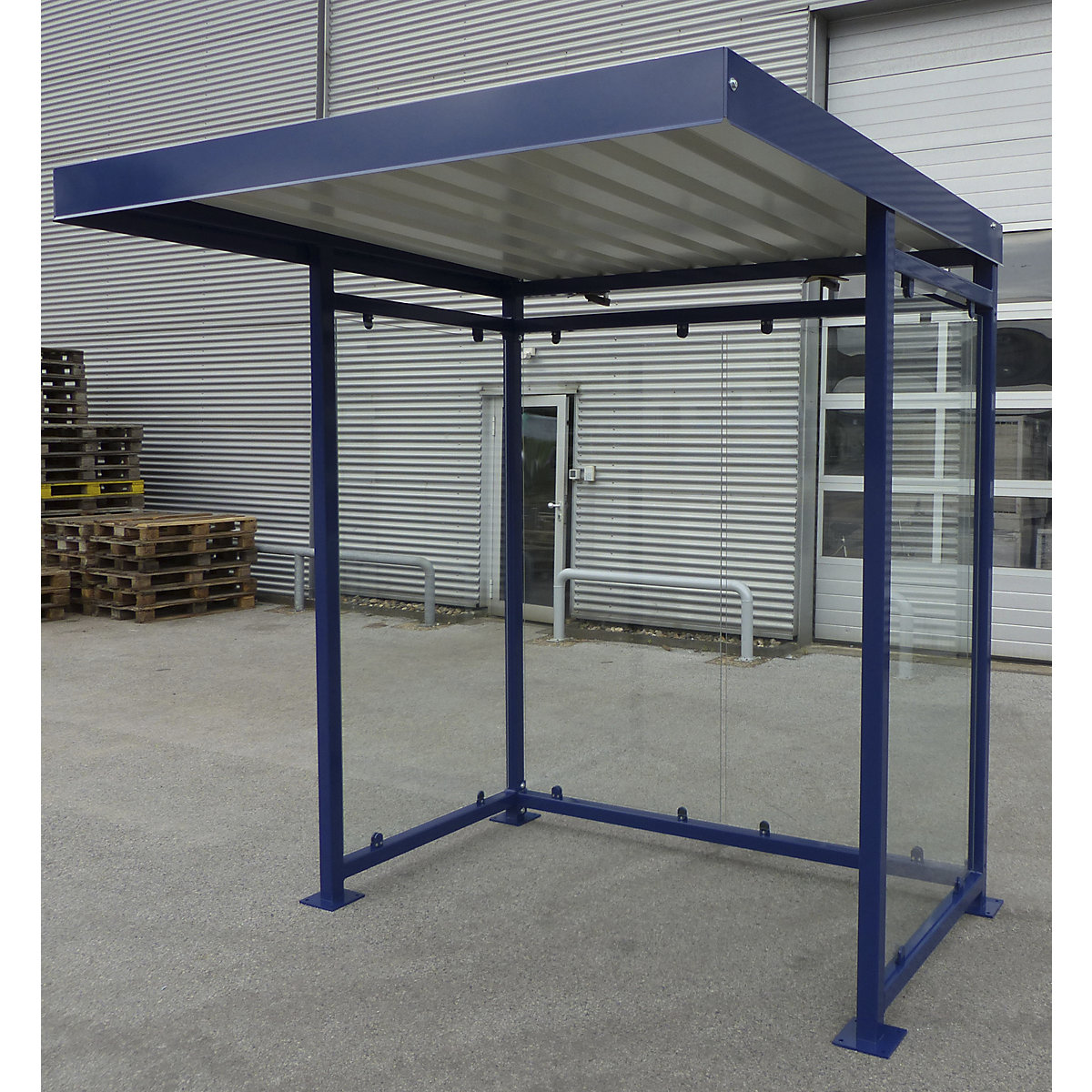

Shelter with rear wall and half closed sides made of single pane safety glass
- With single pane safety glass
- Shelter in a classic design
- Made of rectangular tubing – very stable
- Zinc plated – optimum corrosion protection
Smoke free at the workplace
Our room and shelter systems can be used to quickly create smoking rooms, waiting rooms and weather shelters for every season.
Our room and shelter systems can be used to quickly create smoking rooms, waiting rooms and weather shelters for every season.
Shelter with rear wall and half closed sides, made of single pane safety glass, HxWxD 2350 x 2100 x 2050 mm
Price / items (net)
from
€ 2,650.00
Product description
+
Load bearing frame made of rectangular tubing with base plates to bolt in place. The entire steel structure, including the 150 mm high, 3-sided roof trim, is zinc plated and additionally powder coated.
See selection of RAL colours.
Widths of 4000+ mm with an additional centre support integrated on the front side.
Roof covering is zinc plated and powder coated in grey white RAL 9002.
Rear and side walls are made of 8 mm thick single pane safety glass, fastened with glass mountings.
Supplied with mounting material.
See selection of RAL colours.
Widths of 4000+ mm with an additional centre support integrated on the front side.
Roof covering is zinc plated and powder coated in grey white RAL 9002.
Rear and side walls are made of 8 mm thick single pane safety glass, fastened with glass mountings.
Supplied with mounting material.
The shelter must be anchored to a level and solid foundation provided by the customer.
Max. snow load 75 kg/m².
Max. snow load 75 kg/m².
Supplied flat pack. Assembly instructions and plans for foundation are included. Foundation to be installed by customer.
Other RAL colours, wall sections and lighting available on request.
- With single pane safety glass
- Shelter in a classic design
- Made of rectangular tubing – very stable
- Zinc plated – optimum corrosion protection
Smoke free at the workplace
Our room and shelter systems can be used to quickly create smoking rooms, waiting rooms and weather shelters for every season.
Our room and shelter systems can be used to quickly create smoking rooms, waiting rooms and weather shelters for every season.
Technical data
+
| Height | 2350 mm |
|---|---|
| Depth | 2050 mm |
| Finish | zinc plated and coated with paint |
| Frame material | rectangular steel pipe |
| Frame colour | 5-colour assortment |
| Roof colour | grey white RAL 9002 |
| Roof covering | zinc plated and powder coated in grey white RAL 9002 |
| Roof blind height | 150 mm |
| Construction | full back panel, half size side panels |
| Clear height | 2200 mm |
| Glass material | single pane safety glass |
| Supplied | flat pack |
